Utepo Utp7524gepoe4gf

Vista Rapida
Switch Gigabit PoE Administrable / Capa 2 / 24 Puertos PoE Gigabit RJ45 / 4 Puertos SFP Gigabit / 802.3af&at / PoE 390 Watts. El switch UTP7524GEPOE4GF cuenta con 24...

$ 10,670.00 $ 11,310.00

Agotado

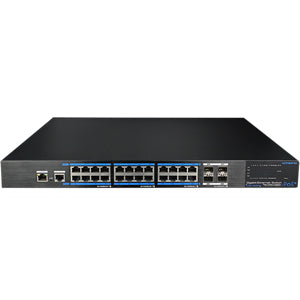

Switch Gigabit PoE Administrable / Capa 2 / 24 Puertos PoE Gigabit RJ45 / 4 Puertos SFP Gigabit / 802.3af&at / PoE 390 Watts.

El switch UTP7524GEPOE4GF cuenta con 24 puertos PoE full Gigabit Ethernet administrable y también cuenta con 4 puertos SFP Gigabit Base-X para la subida de información, adicional a esto cuenta con un procesador industrial Broadcom por tal motivo soportan grandes transferencias de información. La administración de equipo esta basada en capa-2 así como administración de suministro PoE.




MULTIPLES FUNCIONALIDADES

El equipo cuenta con múltiples funcionalidades tales como:

Modo CCTV: permite aislar los 24 puertos y que no tengan comunicación entre ellos, optimiza el flujo de control para una transmisión de video más fluida.



Bloqueo de dispositivo: Bloquea la autenticación de los puertos para denegar el acceso ilegal y para ofrecer una mayor seguridad a la red interna.


Fast Ring: Puede crear una red de anillo rápida en un grupo1 (utilizando los puertos 25-26).


Dispositivo en línea: Cuenta con un monitoreo de 24 para los dispositivos que tenga conectados (funcionalidad de PoE watchdog).





RED DE ANILLO

Cuenta con soporte para red de anillo rápida por lo cual cuenta con una auto recuperación de 20ms y esto permite tener una red más estable y confiable.





DIAGRAMA





VISTAS





DIMENSIONES




ESPECIFICACIONES TECNICAS:

•Copper Ports: 24* 10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X)
•SFP Ports: 4*1000 Base-X SFP (Mini-GBIC)
•Console Port: 1*RJ45-R232 serial port(115200,8,N,1)
•OOB Port: 1*10/100Base- TX RJ45(only used to Web management) default IP:192.168.1.200 name:admin password:admin)
•Init button: Short press:restart; >5s restore factory settings
•Network Standard: IEEE802.3, IEEE802.30, IEEE802.3ab, IEEE802.32, IEEE802.3X, IEEE802.1Q IEEE802.1p IEEE802.3ad, IEEE802.1D, IEEE802.1X
•Switch Fabric: 56Gbps/non-blocking
•Switch Throughput: 41.7Mpps
•Switch Architecture: Store and Forward
•Shared Data Buffer: 12Mbit
•Address Table: 16K MAC address table with auto learning function
•Jumbo Frame: 10K bytes
•PoE Standard: 802.3af/at(PSE)
•PSE Type: End-span
•Power Pin Assignment: 1 / 2 (+), 3/6(-)
•PoE Power Output: 54V DC, 30 watts max
•PoE Budge: 390 watts max
•Lightning protection: 6KV Execute: IEC61000-4-5
•ESD: 6KV Contact discharge, 8KV Air discharge
•Execute: IEC61000-4-2
•Power Supply: 100~240VAC 50/60Hz, Auto-sensing
•Power Dissipation: 450W(Including PoE)
•Work temperatura: -10-50°C
•Storage temperatura: -40-85°C
•Humidity: 5%-95%(Non-condensing)
•Dimension: (LxWxH): 442mmx320mmx44.5mm
•Weight: 4.35kg
•Regulator: CE, FCC, ROHS
