Vivotek Ib9369

Vista Rapida
Cámara IP bullet exterior 2MP/ Lente 2.8mm/ IR 30 Mts/ WDR Enhance, Smart Stream III,Smart motion,3DNR, MicroSD/SDHC/SDXC,IP66/IK10. El modelo IB9369 viene integrado con la función de detección inteligente de movimiento...

$ 2,100.00 $ 2,230.00

Agregar al Wishlist

Cámara IP bullet exterior 2MP/ Lente 2.8mm/ IR 30 Mts/ WDR Enhance, Smart Stream III,Smart motion,3DNR, MicroSD/SDHC/SDXC,IP66/IK10.

El modelo IB9369 viene integrado con la función de detección inteligente de movimiento que incluye la detección humana y filtro de tiempo sintonizable, puede eliminar los defectos de la detección de movimiento tradicional y facilitar la configuración en un sitio de vigilancia. Una característica clave en la detección de movimiento inteligente es la detección humana. Basado en una base de datos de siluetas humanas y las respuestas rápidas a través de una tecnología de red neuronal artificial, el motor inteligente reconoce instantáneamente las apariencias humanas en un área de videovigilancia. Dado que los seres humanos son los objetos de interés en la mayoría de la videovigilancia, la función de detección humana permite a los usuarios configurar rápidamente su instalación.

Con la detección humana, los cambios de luz o la vegetación oscilante, los vehículos que pasan o las actividades de los animales en la escena no se toman como desencadenantes de eventos. Solo las actividades humanas desencadenarán un evento. Esto ayuda a reducir las falsas alarmas y el tiempo y los esfuerzos necesarios para configurar una cámara.

La serie es una cámara de red para exteriores con una resolución de 2MP a 30 fps. Con la tecnología WDR, la serie es capaz de capturar imágenes de la más alta calidad en entornos con poca luz y alto contraste.





Principales Características:

•H.265 Compression Technology
•30 fps @ 1920x1080

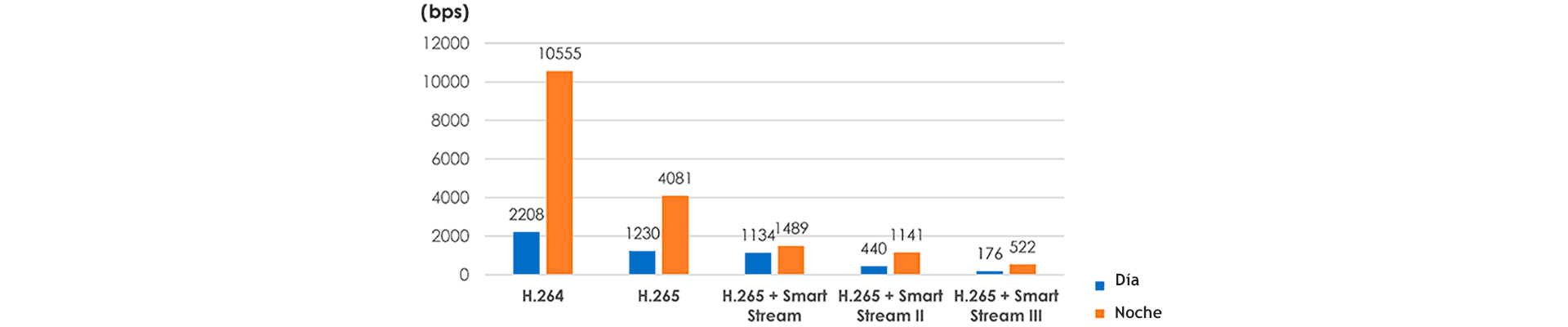

•Smart Stream III to Optimize Bandwidth Efficiency
•Built-in IR Illuminators, Effective up to 30 Meters

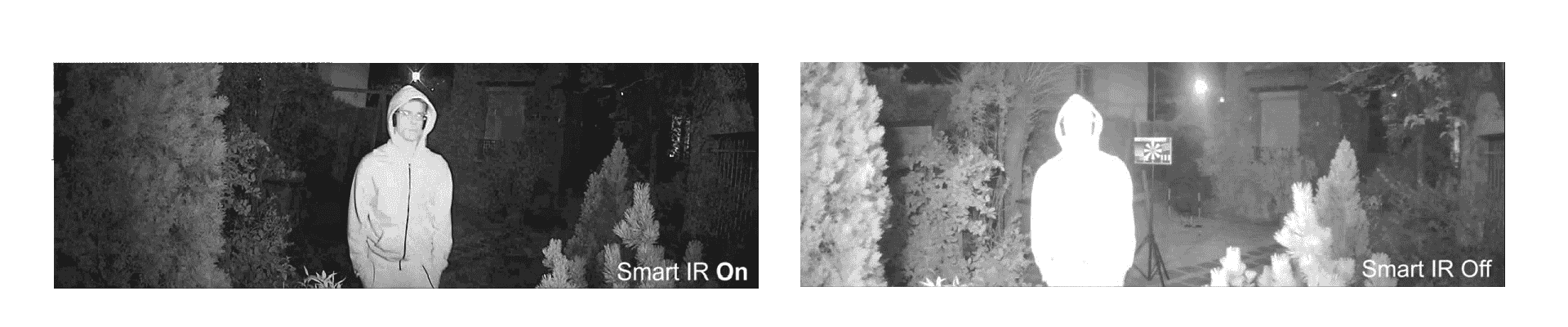

•Smart IR Technology to Avoid Overexposure
•Smart Motion Detection to Reduce False Alarms
•Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
•Weather-proof IP66-rated and Vandal-proof IK10-rated Housing




DIMENSIONES





ESPECIFICACIONES TÉCNICAS.

System Information
Model: IB9369 (2.8mm)
CPU: Multimedia SoC (System-on-Chip)
Flash: 256 MB
RAM: 256 MB

Camera Features
Image Sensor: 1/3.1" Progressive CMOS
Max. Resolution: 1920x1080 (2MP)
Lens Type: Fixed-focal
Focal Length: IB9369 (2.8mm): f = 2.8 mm
Aperture: IB9369 (2.8mm): F2.0
Iris Type: Fixed iris
Field of View: IB9369 (2.8mm): 118° (Horizontal), 65° (Vertical), 140° (Diagonal)
Shutter Time: 1/5 sec. to 1/32,000 sec.
WDR Technology: WDR Enhanced
Day /Night: Yes
Removable IR-cut Filter: Yes
IR Illuminators: Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1
Minimum Illumination: IB9369(2.8mm): 0.08 lux @ F2.0 (Color), <0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on
Tilt Range: 90°
Rotation Range: 180°
Pan/Tilt/Zoom Functionalities: ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in)
Storage: Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)

Video
Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate: 30 fps @ 1920x1080
Maximum Streams: 2 video streams (Up to 7 configurable profiles)
S/N Ratio: 59 dB
Dynamic Range: WDR Support
Video Streaming: Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings: General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day /night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings; Pixel calculator

Network
Users: Live viewing for up to 10 clients
Security: Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management
Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF: Profile G, S, T supported, specification available at www.onvif .org

Solution Integration
Smart Motion Detection: Five-window video motion detection, people detection, time filter VADP Package: Smart Motion Detection

Alarm and Event
Event Trigger: Camera tampering detection, Manual trigger, Motion detection, Periodical trigger, Recording notification, SD card life expectancy, System boot
Event Action: Event notification via email, HTTP, FTP, SFTP, NAS serv er, SD card, push notification File upload via email, HTTP, FTP, SFTP, NAS serv er, SD card

General
Connectors: RJ-45 cable connector for 10/100Mbps Network/PoE connection
LED Indicator: System power and status indicator
Power Input: IEEE 802.3af Class 0 PoE, DC 12V, (Simultaneous Power Redundancy Supported)
Power Consumption: PoE: Max. 6.49W/4W (IR on/off), DC 12V: Max. 5.1W/3.4W (IR on/off)
Dimensions: diámetro 91.1 x 181.5 mm
Weight: 671 g
Certifications: EMC: CE (EN55032 Class A, EN55035), FCC (FCC Part 15 Subpart B Class A), ICES-003 issue 7, RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471, IEC/EN 60950-22); IA: BIS (IS 13252): BSMI; Environment: IK10 (IEC 62262), IP66 (IEC 60529)
Operating Temperature: Starting Temperature: -30°C ~ 50°C (-22°F ~ 122°F), Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off), -30°C ~ 50°C (-22°F ~ 122°F) (IR on)
Humidity: 95% RH (non-condensing)

System Requirements
Operating System: Microsoft Windows 10/8/7, Mac 10.12 (Chrome only)
Web Browser: Chrome 58.0 or above, Internet Explorer 10/11
Other Players: VLC: 1.1.11 or above
