Detalles

Dahua Ipc-Hfw5442t-as-led

Vista Rapida
Camara IP Bullet Full Color de 4 Megapixeles/ Lente de 3,6 mm/ H.265+/ WDR Real de 140 dB/ E&S de Audio/ E&S de Alarma/ Leds 20 Metros/ IP67/ IK10/ PoE/...

$ 4,620.00 $ 4,900.00

Agotado

Camara IP Bullet Full Color de 4 Megapixeles/ Lente de 3,6 mm/ H.265+/ WDR Real de 140 dB/ E&S de Audio/ E&S de Alarma/ Leds 20 Metros/ IP67/ IK10/ PoE/ Detección de Rostros/ Protección Perimetral.

Con la solución Starlight y el algoritmo de aprendizaje profundo, Dahua WizMind. La cámara de red de la serie 5 tiene varias funciones inteligentes, que incluyen captura de rostros, protección del perímetro y recuento de personas, lo que en gran medida mejorar la precisión del análisis de video, cumple con los estándares de IP67 e IK10.

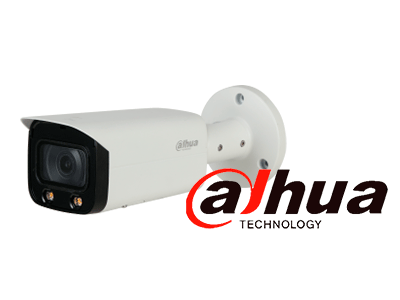

Principales Características:

•CMOS de barrido progresivo de 1 / 1,8 ”y 4 megapixeles.
•ROI, SMART H.264 + / H.265 +, codificación flexible, aplicable a varios entornos de ancho de banda y almacenamiento.
•25/30 fps @ 2688 × 1520, 50/60 fps @ 1080P (1920 × 1080).
•WDR (140 dB), día / noche (electrónico), 3D DNR, AWB, AGC, BLC.
•Monitoreo de múltiples redes: visor web, CMS (DSS / PSS) y DMSS.
•Lente fijo de 3.6 mm.
•1/1 entrada / salida de alarma, 1/1 entrada / salida de audio.
•Máx. LED Longitud 20 m.
•Memoria Micro SD, IP67, IK10.






TECNOLOGIA FULL COLOR


La cámara adopta una lente de gran apertura F1.6 y un sensor de alto rendimiento de 1/1.8". Con una mayor cantidad de luz absorbida y un algoritmo avanzado de procesamiento de imágenes, la cámara presenta una iluminación tenue, impresionante rendimiento con un equilibrio excepcional entre reducción de ruido y el desenfoque de un objeto en movimiento.





DETECCION FACIAL


La tecnología Dahua Face Detection puede detectar la cara en la imagen. Con el algoritmo de aprendizaje profundo, la tecnología admite la detección, el seguimiento, la captura y la selección de la mejor imagen facial y luego genera una instantánea.





APOYO EN CONTEO DE PERSONAS



Apoya el conteo de ingresar y número de pase, mostrar y producción de informes anuales / mensuales / diarios. Cuenta el número de personas o permanezca el tiempo y enlace de alarma. Admite gestión de colas y 4 reglas configuración.

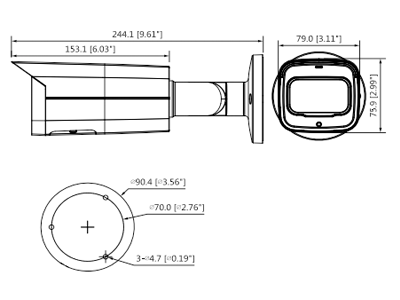

 DIMENSIONES







ESPECIFICACIONES TECNICAS:

1. Camera.-
•Image Sensor 1/1.8” 4 Megapixel progressive scan CMOS
•Max. Resolution 2688 (H) × 1520 (V)
•RAM/ROM 512 MB/128 MB
•Scanning System Progressive
•Electronic Shutter Speed Auto/Manual, 1/3 s-1/100000 s
•S/N Ratio > 56 dB
•Minimum Illumination 0.002 Lux@F1.6
•Illumination Distance Distance up to 20 m (66 ft)
•Illuminator On/Off Control Auto/Manual
•Illuminator Number 2 (LED)

2. Lens.-
•Lens Type Fixed-focal
•Mount Type Board-in
•Focal Length 2.8 mm, 3.6 mm, 6.0 mm
•Max. Aperture F1.6
•Angle of View H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31°
•Aperture Type Fixed
•Close Focus Distance 1.3 m (4.27 ft)/1.9 m (6.23 ft)/3.8 m (12.47 ft)
•DORI Distance:
-Lens 2.8mm:
Detect 58m(190ft)
Observe 23m(75ft)
Recognize 12m(39ft)
Identify 6m(20ft)
-Lens 3.6mm:
Detect 72m(236ft)
Observe 29m(95ft)
Recognize 14m(46ft)
Identify 7m(23ft)
-Lens 6mm:
Detect 113m(371ft)
Observe 45m(148ft)
Recognize 23m(75ft)
Identify 11m(36ft)

3. Pan/Tilt/Rotation.-
•Pan/Tilt/Rotation Range Pan: 0-360 grades; Tilt: 0-90 grades; Rotation: 0-360 grades.

4. Artificial Intelligence
•Face Detection: Face detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
•Perimeter Protection: Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
•People Counting: Support the counting of enter number, leave number, and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm

5. General Intelligence.-
•Event Trigger: Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
•General Intelligence Object Abandoned/Missing
•Heat Map Yes

6. Video.-
•Compression H.265, H.264, H.264B, H.264H, MJPEG (only supported by sub stream)
•Smart Codec Smart H.265+/ Smart H.264+
•Resolution: 2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF
(352 × 288/352 × 240)
•Streaming Capability 3 Streams
•Frame Rate:
-Main Stream:
2688 × 1520 (1 fps-25/30 fps)
2560 × 1440 (1 fps-25/30 fps)
1920 × 1080 (1 fps-50/60 fps)
-Sub Stream:
D1 (1 fps-25/30 fps)
D1 (1 fps-50/60 fps)
-Third Stream: 1080P (1 fps-16 fps)
•Bit Rate Control CBR/VBR
•Bit Rate
-H.264: 32 Kbps-8192 Kbps
-H.265: 19 Kbps-8192 Kbps
•Day/Night Day/Night: Electronic Auto/Color/B/W
•BLC Mode BLC/HLC/WDR (140 dB)
•White Balance Auto/Natural/Street Lamp/Outdoor/Manual
•Gain Control Auto/Manual
•Noise Reduction 3D DNR
•Motion Detection Off/On (4 Zone, Rectangle)
•Region of Interest Off/On (4 Zone)
•Smart Illumination Yes
•Defog Yes
•Flip 0/90/180/270 grades.
•Mirror Off/On
•Privacy Masking Off/On (4 Area, Rectangle)

7. Audio.-
•Compression G.711a, G.711Mu, G.726, AAC, G.723

8. Alarm.-
•Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; Defocus Detection; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; audio detection; people counting; face detection; People counting in area; Stay alarm; People
No. exception detection; Queue Management

9. Network.-
•Network RJ-45 (10/100 Base-T)
•SDK and API Yes
•Protocol: IPv4; IPv6; http; https; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
•Interoperability ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P
•User/Host 20 Users
•Storage NAS; FTP; SFTP; Dahua Cloud; Micro SD card 256 GB
•Browser IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12)
•Management Software Smart PSS, DSS, DMSS
•Mobile Phone iOS, Android

10. Certifications.-
•Certifications
-CE-LVD: EN62368-1
-CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
-FCC: 47 CFR FCC Part 15, Subpart B
-UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

11. Interface.-
•Audio Interface 1/1 channel In/Out
•Alarm;
-1 channel In: 5mA 5V DC
-1 channel Out: 300mA 12V DC

12. Electrical.-
•Power Supply DC 12V (+-30%), PoE (802.3af)
•Power Consumption <7.4W

13. Environmental.-
•Operating Conditions -40°C to +60°C (-40°F to +140°F)/Less than 95% RH
•Storage Conditions -40°C to +60°C (-40°F to +140°F)
•Protection Grade IP67, IK10

14. Construction
•Casing Metal
•Dimensions 244.1 mm × 79.0 mm × 75.9 mm (9.61” × 3.11” × 2.99”)
•Net Weight 0.815 kg (1.80 lb)
•Gross Weight 1.08 kg (2.38 lb)
