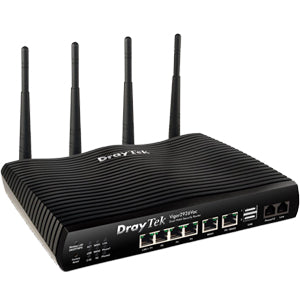

Draytek Vigor2926vac

Vista Rapida
Ruteador Inalambrico Multi WAN/ 2 Puertos WAN GE RJ45/ 4 Puertos LAN GE/ 50 VPN/ 2 Puertos USB/ VoIP/ WiFi AC hasta 1733 Mbps. La serie Vigor2926 es un router...

$ 7,180.00 $ 7,690.00

Agotado

Ruteador Inalambrico Multi WAN/ 2 Puertos WAN GE RJ45/ 4 Puertos LAN GE/ 50 VPN/ 2 Puertos USB/ VoIP/ WiFi AC hasta 1733 Mbps.

La serie Vigor2926 es un router de doble WAN de banda ancha con IPv6 implementado y firewall de seguridad. Asegura la continuidad del negocio, no sólo para hoy, sino también para la futura utilización de IPv6. Tiene dos puertos WAN de Gigabit Ethernet que aceptan enlaces de alta velocidad basadas en Ethernet vía FTTx/xDSL/Cable. Los dos puertos USB sirven para el acceso de banda ancha móvil de 3.5G/4G LTE. Con los accesos de múltiple WAN, los routers de la serie Vigor2926 soportan funciones de gestión del ancho de banda, tales como failover y el balanceo de carga.

Principales Características:

•2 Puertos WAN Gigabit, RJ-45.
•4 Puertos LAN 10/100/1000 Base Tx, RJ45.
•2 Puertos USB (Para internet móvil 3G/4G*, servidor FTP e impresora).
•2 puertos FXS y 1 puerto para linea Base RJ-11.
•50 Túneles de VPN.
•Capacidad de VLAN basada en puertos.
•Red Inalámbrica 802.11ac 2.4 GHZ y 5.8GHZ (Control de Acceso a Direcciones MAC, SSID Oculto).
•3 antenas desmontables.
•1 Botón para red inalámbrica ON/OFF WPS.
•Seguridad: WEP WAP/WAP2.
•Firewall (Re direccionamiento de puerto, filtro de direcciones MAC, URL Keyword Filter, Web Content Filter y CSM).
•Banda Dual con capacidad de auto failover y balanceo de carga.



DOBLE WAN DE GIGABIT ETHERNET PARA FAILOVER Y BALANCEO DE CARGA



Los puertos WAN de Gigabit Ethernet atienden todo tipo de acceso de Internet, incluyendo FTTx, xDSL y Cable que están montados en su infraestructura local. Puede utilizar ambos puertos WAN, la 1 y la 2 para failover para asegurarse de que siempre tiene un acceso a Internet aunque una de las dos conexiones falle, o también se pueden usar para balanceo de carga, así las dos WAN´s comparten las necesidades del tráfico de Internet de su organización.





2 PUERTOS USB 2.0 PARA BANDA ANCHA 3.5G/4G LTE, FTP E IMPRESORAS DE RED



Los dos puertos USB se usan para la conexión de banda ancha móvil 3.5G/4G, FTP drive e impresoras de la red. Un enlace conectada a banda ancha móvil 3G/4G de los dos puertos USB puede ser utilizada como la segunda WAN para gestión de ancho de banda. La interfaz USB WAN se puede usar también como el primer acceso a Internet si el servicio de la línea fija local no ha sido desplegado todavía. Usted puede tener dos dongles (módems) USB 3G/4G conectados a los dos puertos y asignar uno de ellos (WAN 3) para el primer acceso y el otro (WAN 4) para failover y backup.


RED INALAMBRICA DOBLE CONCURRENTE 802.11ac (FRECUENCIA 2.4/5GHz)



El equipo Draytek Vigor 2926ac cuenta con el protocolo 802.11ac para conexión de redes inalámbricas, las cuales pueden contar con una velocidad hasta 300Mbps en la frecuencia de 2.4GHz y hasta 1300Mbps en la frecuencia 5GHz (802.11ac).





ADMINISTRACION LAN FLEXIBLE



Con los 4 puertos Gigabit LAN ofrece la conectividad de velocidad extremadamente alta para la transferencia de datos locales de velocidad más alta de cualquier servidor o PCs locales. Las VLANs etiquetadas (802.1q) pueden marcar datos con un identificador de VLAN. Este identificador puede ser llevado a través de un switch Ethernet adelante a puertos específicos. Los clientes de VLAN específica pueden recoger este identificador cuando se acaba de pasar a LAN.




TUNELES VPN NIVEL EMPRESARIAL



Soporta hasta 50 túneles VPN con la encriptación de hardware de AES/DES/3DES gracias a que cuenta con un co-procesador dedicado para el uso de estas mismas. Este nivel de capacidad de VPN incluye necesidades de la mayoría de los negocios para tener acceso remoto seguro de datos entre oficinas. Para la aplicación sitio a sitio, la serie Vigor 2926 proporciona balanceo de carga y backup con su opción de VPN Trunking para proporcionar el alto rendimiento y acceso remoto fiable.







ESPECIFICACIONES TECNICAS:

  1. Hardware Interface
    • 2 x 10/100/1000Base-TX, RJ-45 (WAN1/WAN2)
    • 4 x 10/100/1000Base-TX LAN, RJ-45 (Configurable Physical DMZ on Port4)
    • 2 x Detachable Antennas (n model)
    • 4 x Detachable Antennas (ac,Vac Model)
    • 2 x USB Host 2.0
    • 1 x Factory Reset Button
    • 1 x Wireless On/Off/ WPS Button (n/ac/Vac model)
    • 2 x FXS and 1 x Life Line Port, RJ11 (Vac Model)
    • Temperature
      • Operating: 0°C~45°C
      • Storage: -25°C~70°C
    • Humidity: 10%~90% (non-condensing)
    • Power Adapter: DC 12V @ 1.5A~2A
    • Power Consumption: 19~24 Watt
    • Dimension: L241*W165*H44 (mm)
  2. WAN Protocol
    • Ethernet WAN:
      • DHCP Client
      • Static IP
      • PPPoE
      • PPTP / L2TP (WAN-2 only)
      • 802.1q Multi-VLAN Tagging
    • IPv6 Connection Type:
      • Dual Stack: PPP, DHCPv6 Client, Static IPv6
      • Tunnel Mode: TSPC, AICCU, 6rd, 6in4 Static Tunnel
    • USB WAN:
      • PPP (3G) / CDC driver (3G)
      • Support IPv6 protocol: TSPC/AICCU
  3. Dual WAN
    • Load-Balance / Route Policy
    • Outbound policy-based load-balance
    • WAN Connection Failover
    • Multiple-VLAN
  4. LAN
    • Support IPv6 LAN
    • Port-based / Tag-based VLAN
    • Bind IP to MAC Address:
      • Disable / Enable / Strict Bind
      • IP Bind list: 1024 entries
    • LAN Port Mirror
    • Wired 802.1x
    • Web Portal
    • Support IP Pool Count more than 253 (up to 1022) for LAN1~3 subnet
    • 8 x Multiple Subnet LAN
  5. Firewall
    • DMZ Host: Port-redirection, Open Port, Port Triggering
    • User-based / Rule-based Firewall
    • Object-based Firewall:SPI (Stateful Packet Inspection) (Flow Track)
    • DoS Prevention
    • Time Schedule Control
    • DNS Filter Enhancement
    • User Management
    • Firewall Wizard Mode and Advanced Mode
  6. VPN
    • Up to 50 VPN Tunnels (including 25 SSL VPN tunnels)
    • VPN Wizard
    • VPN Trunk with Backup / Load Balance
    • Protocol: PPTP, IPsec, L2TP, L2TP over IPsec, GRE over IPSec
    • Encryption: MPPE and hardware-based AES/DES/3DES
    • Authentication: MD5, SHA-1
    • IKE Authentication: Pre-shared Key and Digital Signature (X.509)
    • LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)
    • DHCP over IPsec
    • IPsec NAT-traversal (NAT-T)
    • Dead Peer Detection (DPD)
    • VPN Pass-through
    • mOTP
  7. Bandwidth Management
    • QoS
      • Guarantee bandwidth for VoIP
      • Class-based bandwidth guarantee by user-defined traffic categories
      • DiffServ Code Point classifying
      • 4-level priority for each direction (Inbound/Outbound)
      • Bandwidth borrowed
    • Bndwidth/Session limitation
      • Smart Bandwidth Limit
      • config by ip range
      • Layer-3 (TOS/DSCP) QoS
    • Layer-2 (802.1p) QoS
    • WAN budget
  8. Network Feature
    • Hotspot Web Portal
    • Packet Forwarding Acceleration
    • DHCP client/relay/server
    • DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
    • IGMP v2/v3
    • LAN DNS/DNS Forwarding
    • Dynamic DNS
    • NTP Client
    • Call Scheduling
    • RADIUS/TACACS+ Client
    • Internal RADIUS Server
    • Active Directory/LDAP compatible (client)
    • DNS Cache/Proxy and LAN DNS
    • UPnP 50 sessions
    • Wake on LAN
    • Bonjour service
    • Routing Protocol:
      • Static Routing
      • RIP v1/v2
      • BGP
    • Triple-Play Application
      • IGMP snooping/proxy
    • 6 x Multiple Subnet LAN
    • Support Smart Monitor (Up to 30 PCs)
  9. Central Device Management
    • AP Management
    • VPN Management
    • Switch Management
    • External Devices
  10. CSM (Content Security Management)
    • APP Enforcement
      • Support APPE Signature Upgrade by license
    • URL Content Filter
      • Access Control : URL Keyword Blocking (White/Black List)
      • Web Feature : Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
    • Web Content Filter (support Cyren and BPjM)
    • DNS Filter
  11. USB
    • Printer Sharing
    • File System
      • Support FAT32 File System
      • Support FTP Function for File Sharing
    • 3.5G (HSDPA) and 4G (LTE) as WAN3/WAN4 by using USB dongle (can support Dual USB WAN)
    • USB Device Status (disk/modem/printer/sensor)
    • Support USB Temperature Sensor
    • Support file sharing (DrayTek’s own SMB protocol stack)
  12. Network Management
    • Web-based User Interface (HTTP/HTTPS)
    • CLI (Command Line Interface, Telnet/SSH)
    • Administration Access Control
    • Configuration Backup/Restore
    • Built-in Diagnostic Function
    • Firmware Upgrade via TFTP/HTTP/TR-069
    • Logging via Syslog
    • SNMP v2/v3
    • Support SMS/E-mail Alert
    • Management Session Time Out
    • Two-level Management (Admin/User Mode)
    • External device detection (master mode)
    • TR-069/TR-104
    • Support Multiple-Firmware Upgrade Utility (MFUU)
    • Dashboard
  13. Wireless AP (for n/ac/Vac model)
    • 2.4 GHz (for n model)
    • 2.4 + 5 GHz (for ac/Vac model)
    • Wireless Client List
    • Wireless LAN Isolation
    • 64/128-bit WEP
    • WPA/WPA2
    • Hidden SSID
    • WPS
    • MAC Address Access Control
    • Access Point Discovery
    • WDS (Wireless Distribution System)
    • 802.1x Authentication
    • Multiple SSID
    • Wireless Rate-control
    • WMM
    • SSID VLAN Grouping with LAN Port (Port-based VLAN)
  14. VoIP (for Vac model)
    • Protocol: SIP, RTP/RTCP
    • 12 SIP Registrars
    • Automatic Gain control
    • Jitter buffer (180ms)
    • Jitter Buffer
    • Voice codec: G.711 A/u law, G.723.1, G.726, G.729 A/B, VAD/CNG
    • Tone generation and detection: DTMF, dial, busy, ring back, call progress
    • DTMF Tone: Inband, Out band (RFC-2833), SIP Info
    • FAX/Modem Support: Tone detection, G.711 Pass-through, T.38 for FAX
    • Supplemental Services:
      • Call Hold/Retrieve/Waiting
      • Call Waiting with Caller ID
      • Call Transfer
      • Call Forwarding (Always, Busy, No Answer, Busy or No Answer)
      • Call Barring (Incoming/Outgoing)
      • DND (Do Not Disturb)
      • MWI (Message Waiting Indicator) (RFC-3842)
      • Hotline
      • ZRTP
    • PSTN Loop-through When Power Failure
    • Dial Plan:
      • Phone Book
      • Digit Map
      • Call Barring
      • Regional
