Vivotek Awgev267a370

Vista Rapida
Switch Gigabit PoE 24 puertos GE / Administrable / 2 Combo GE / 2 SFP / 370W Totales / Capa 2 / VIVOCAM / Hasta 30W por puerto. La serie...

$ 17,960.00 $ 19,040.00

Agotado

Switch Gigabit PoE 24 puertos GE / Administrable / 2 Combo GE / 2 SFP / 370W Totales / Capa 2 / VIVOCAM / Hasta 30W por puerto.

La serie VivoCam L2+ es un switch PoE administrable con funciones de gestión de vigilancia IP. Este switch es capaz de configurar cámaras IP VIVOTEK, servidores de video y permite a los usuarios encontrar todos los dispositivos VIVOTEK y desplegar automáticamente un sistema de red de vigilancia.

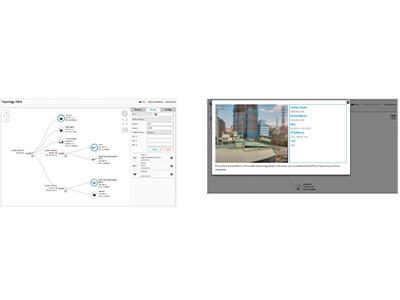

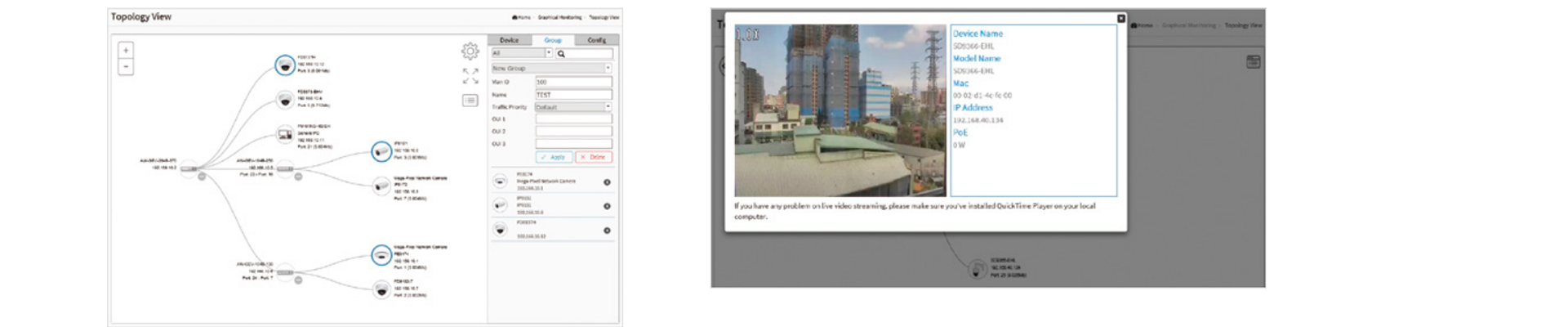

La serie VivoCam L2+ también cuenta con Vista Gráfica, como la vista Topología/Mapa para controlar y comprender la estructura de la red, la situación del dispositivo y la integración de Google Map para ver el estado de la situación del sistema para aplicaciones al aire libre.

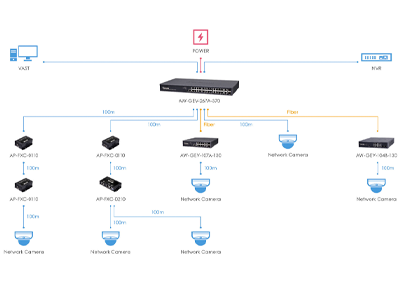

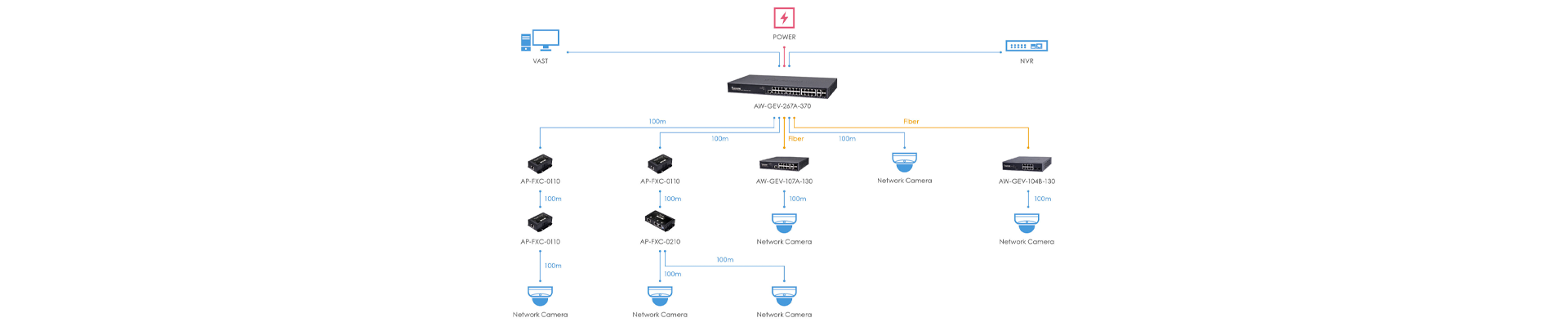

APLICACIONES











ESPECIFICACIONES TECNICAS:

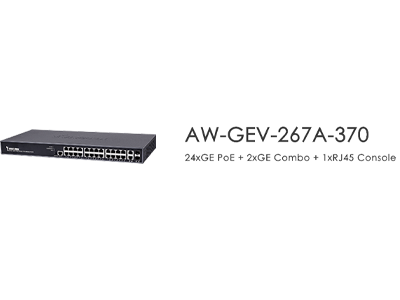

1. Model: AW-GEV-267A-370
Product Description: VivoCam L2+ Managed PoE Switch 24xGE PoE + 2xGE Combo + 1xRJ45 Console

2. Managing IP Surveillance Functions
•Management
Auto Search VIVOTEK Device: up to 1000 pcs
Surveillance Device Management List: V
DHCP Server Function: V
VIVOTEK Device Account/Password Setting:V
VIVOTEK Device Static IP Setting: V
VIVOTEK Device Grouping Setting for VLAN: V
VIVOTEK Device Name Edit: V
VIVOTEK Camera/Video Server Reboot/Restore Default: V
VIVOTEK Device Re-direct Link: V
VIVOTEK Device On/Off Line Status: V

•Graphic View:
Topology View : V
Floor View: V
Google Map View: V

 •Maintenance
VIVOTEK Camera/Video Server Batch SW Upgrade: V
VIVOTEK Camera/Video Server Configuration File Export/Import: V
VIVOTEK Cameras/Video Server Configuration File Management: V
Floor Image Management: V
Export Surveillance Management Device List: V
Security: V
Trouble Shooting: V
Traffic Monitoring: V

3. Managed Layer 2+ PoE Switch Functions
•Port Configuration
10M/100M/1G RJ45 PoE Port: 24
GE RJ45/SFP Combo Port: 2
RJ45 Console Port: 1
Total Ports: 27

•HW Performance
Switching Bandwidth: 52Gbps
Forwarding Capacity: 38.68 Mpps
MAC Address: 8K
Jumbo Frames: 9216 Bytes
Surge Protection: Per Port 6KV

•Layer 2+ Features
Spanning Tree IEEE802.1D (STP): V
IEEE802.1w (RSTP): V
IEEE802.1s (MSTP): V
VLAN 802.1Q VLAN 4096 VLAN IDs
SVL/ IVL: V
Private VLAN: V
Guest VLAN: V
Q-in-Q (Double Tag): V
802.1v Protocol VLAN: V
MAC-based VLAN: V
IP Subnet-based VLAN: V
Trunking IEEE 802.3ad LACP: up to 16 ports in a group, max up to 13 groups
Static Trunk: up to 16 ports in a group, max up to 13 groups
IGMP Snooping (v1/v2/v3): V
Loop Detection

L3 Features
IP Host Table: V
IPv4/v6 Static Routing: V
Static ARP: V
DHCP Server: V

QoS Features
Hardware Queues: 8
Class Of Service Port Based: V
802.1p: V
CoS V: V
DSCP: V
TCP/UDP (IPv4/IPv6): V
Rate Limiting Ingress: V
Egress: V
Priority Queue Scheduling WRR: V
Strict Priority: V
IPv4 QoS (QCEs): V
IPv6 QoS (QCEs): V

•Security
Port Security (MAC-based): V
IEEE802.1x: V
ACLs Source and Destination MAC, VLAN ID or IP Address, Protocol, Port: V
(DSCP) / IP Precedence: V
TCP/ UDP Source and Destination Ports: V
802.1p Priority : V
ICMP Packets: V
IP Source Guard (IP-MAC-Port Binding): V
Storm Control: V
RADIUS Authentication (RFC2138): V
DDoS Prevention: V
Layer 3 Isolation (Allow/Disallow Routing between IP Subnets): V
https and SSL (Secured Web): V
SSH v1.5/v2.0 (Secured Telnet Session): V
BPDU Guard: V
STP Root Guard: V
DHCP Snooping: V

•Management
SNMP (v1, v2c, v3): V
RMON (1, 2, 3 & 9 groups): V
Software Upgrade:V
Configuration Export/Import: V
DHCP Client: V
Option 66: V
Option 67: V
Event/Error Log Syslog: V
Management Access Filtering SNMP: V
Web: V
Telnet: V
Port Mirroring: V
MLD Snooping: AB): V
LLDP-MED:V
CDP: V
NTP/ SNTP (RFC2030): V

•IPv6 Support
Dual IPv6/IPv4 stack: V
IPv6 Web/SSL: V
IPv6 SNTP (Simple Network Time Protocol): V
IPv6 Telnet Server/SSH: V
IPv6 Ping Trace Route: V
IPv6 TFTP: V
IPv6 RADIUS: V
IPv6 Syslog: V
IPv6 DNS Client: V
Pv6 Protocol-based VLANs: V
IPv6 SNMP: V

•PoE Management
ON/OFF Config: V
Alive Checking for PD: V
Power Delay: V
7/24 On/Off Scheduling: V

•PoE Function
Number of PoE Out Ports: 24
PoE Output Power: Per Port 54VDC, Max. 30W
802.3at/af Standard Compatible: V
Over Current Protection: V
Circuit Shorting Protection: V
Total PoE Power Budget: 370W
Power Pin Assignment: 1/2(+), 3/6(-)
PoE PD Auto Detection:V

•Environmental Specifications
Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Operating Humidity:10 ~ 90% RH
Storage Temperature: -20°C ~ 70°C (-4°F ~ 158°F)
Storage Humidity:10 ~ 90% RH

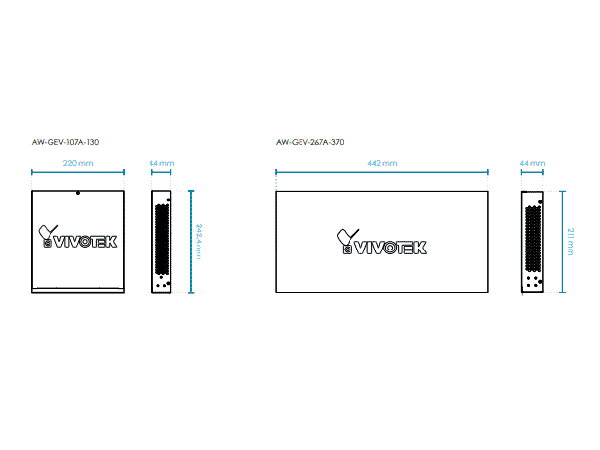

•Mechanical Specifications
Dimensions:44 (H) x 442 (W) x 211 (D) mm
Weight: 3.1 kg

•Power Source
AC Input: 100V-240V
Frequency: 50~60 Hz

•Certifications
Certifications: CE, FCC, LVD, VCCI, C-Tick

•Optional Accessories
SFP Transceiver
SFP-1000-MM85-X5: MMF, 0.5 km, 0°C ~ 70°C
SFP-1000-MM13-02: MMF, 2 km, 0°C ~ 70°C
SFP-1000-SM13-10: SMF, 10 km, 0°C ~ 70°
SFP-1000-SM13-40: SMF, 40 km, 0°C ~ 70°C
