Dahua Kit 4ch 5mp con Audio

Vista Rapida
Kit de 4 Canales 5 Megapixeles con Audio/ WizSense/ H.265+/ 4 Camaras Metalicas/ 4 Canales + 4 IP o Hasta 8 Canales IP/ 1 Canal con Reconocimiento Facial/ 4 Ch...

$ 3,870.00 $ 4,100.00

Agregar al Wishlist

Kit de 4 Canales 5 Megapixeles con Audio/ WizSense/ H.265+/ 4 Camaras Metalicas/ 4 Canales + 4 IP o Hasta 8 Canales IP/ 1 Canal con Reconocimiento Facial/ 4 Ch SMD Plus/ IoT & POS/ 1 Sata de 10TB.

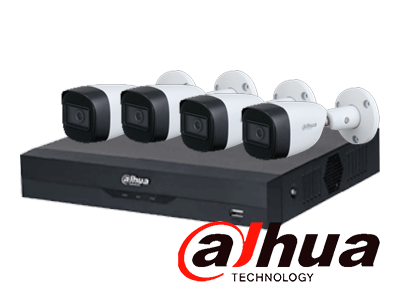

Este Kit Incluye:

•1 DVR modelo XVR 5104HS-4KL-I3.
•4 cámaras bullet de policarbonato HFW1500CM-A.
•4 rollos de cable siamés de 18 mts.
•1 Fuente de poder (para las 4 cámaras).
•1 Pulpo para 4 cámaras.

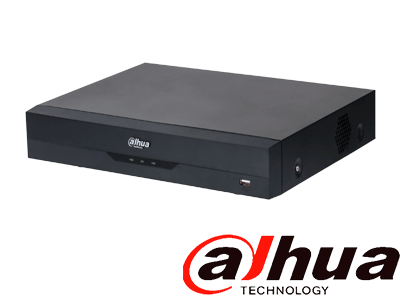

INFORMACIÓN GENERAL DVR.

Este kit de vigilancia está conformado por el grabador XVR5104HS-4KL-I3, pertenece a la serie WizSense I3 con Inteligencia Artificial, puede reducir las tasas de falsas alarmas y los costos de vigilancia humana, con alarma precisa para personas y/o vehículos. Este grabador soporta 4 canales HDCVI 5MP más 4 canales Ip ( 8Mp máximo ) y una codificación inteligente en sus 4 canales.






Características Principales del DVR:

•Compresión de video de doble flujo H.265 + / H.265.
•Admite codificación AI de canal completo.
•Admite entradas de video HDCVI / AHD / TVI / CVBS / IP.
•Soporta hasta 5Mp en cámaras HDCVI.
•Se pueden agregar hasta 4 cámaras IP ( 8Mp máximo ).
•Larga distancia de transmisión por cable coaxial.
•Soporta hasta 4 canales SMD Plus.
•Codificación Inteligente.
•Interfaz monitor 1 HDMI, 1 VGA.
•Interfaz red 1 puerto RJ-45 (100 MB).
•Max. Acceso de usuario 128.
•1 puerto SATA, hasta 10 TB de capacidad.
•Peso Neto sin Disco Duro 0.53 kg.
•Dimensiones 260 mm × 237.9 mm × 47.6 mm.

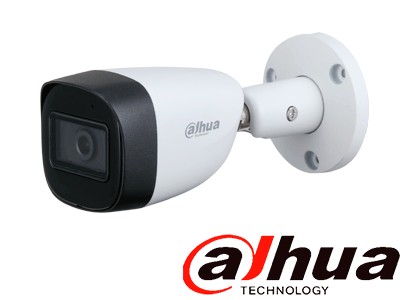

INFORMACIÓN GENERAL DE LAS CÁMARAS.


Las cámaras incluidas en este kit son el modelo HFW1500CM-A, es una cámara metálica con tecnología HDCVI de 5Mp con audio integrado, tiene un IR inteligente con alcance de 30 mts.





Características Principales de las cámaras:

•Bullet HDCVI 1080P.
•Audio Incorporado.
•Formatos compatibles HDCVI/TVI/AHD/CVBS (para cambiar de tecnología es necesario PFM820).
•Iluminación mínima 0.01Lux / F1.6, 30IRE, 0Lux IR encendido.
•30 metros de distancia de IR LEDs.
•Sensor de Imágen 1/2.7" CMOS.
•Día y Noche.
•Menú osd multilenguaje.
•BLC, HLC, DWDR.
•Reducción de ruido 2D.
•Smart IR.
•Fuente de alimentación 12V DC ±30%.
•Consumo de energía máx 3.7w (12V DC, IR encendido).
•Condiciones de operación -40 ° C ~ + 60 ° C.
•Indice de protección IP67.
•Metálica.
•Dimensiones 166.6mm×69.7mm×70.0mm.
•Peso Neto 0.33kg.


COMPRESIÓN H.265+

Smart H.265 + es la implementación optimizada del códec H.265 que utiliza una estrategia de codificación adaptada a la escena, GOP dinámico, ROI dinámico, flexible estructura de referencia multi-trama y reducción inteligente de ruido para ofrecer video de alta calidad sin forzar la red. La tecnología Smart H.265 + reduce la velocidad de bits y los requisitos de almacenamiento hasta en un 70% en comparación con la compresión estándar de video H.265.




CANALES IP ADICIONALES.

El KITXVR5104HS-4KL-I3 permite la transmisión de 4 canales IP adicionales, los cuales soportan cámaras IP de hasta 8MP, adicionales a los canales de cámaras analógicas.




DIMENSIONES.





ESPECIFICACIONES TÉCNICAS DVR DH-XVR5104HS-4KL-I3.

System
Main Processor: Embedded processor
Operating System: Embedded linux

Perimeter Protection
Performance: 1 channel, 10 IVS for each channel
Object classification: Human/Vehicle secondary recognition for tripwire and intrusion
AI Search: Search by target classification (Human, Vehicle)

Face Recognition
Performance: Max 8 face pictures/sec processing, 1 channel video stream face recognition, only support analog camera
Stranger Mode: Detect strangers' faces (not in device's face database). Similarity threshold can be set manually
AI Search: Up to 8 target face images search at same time, similarity threshold can be set for each target face image
Database Management: Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate no., countries & regions and state can be added to each face picture
Database Application: Each database can be applied to video channels independently
Trigger Events: Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

SMD Plus
Performance: 4 channels
AI Search: Search by target classification (Human, Vehicle)

Video and Audio
Analog Camera Input: 4 channels, BNC
HDCVI Camera Input: 4K, 6MP, 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps,720p@ 25/30 fps
AHD Camera Input: 4K, 5MP, 4MP, 3MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera Input: 4K, 5MP, 4MP, 3MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
CVBS Camera Input: PAL/NTSC
IP Camera Input: 4+4 channels, each channel up to 8MP
Audio In/Out: 1/1, RCA
Two-way Talk: Reuse audio in/out, RCA

Recording
Compression: AI Coding/H.265+/H.265/H.264+/H.264
Resolution: 4K; 6MP; 5MP; 4MP; 3MP; 4M-N; 1080P; 720P; 960H; D1; CIF
Record Rate: Main stream: All channel 4K (1 fps–7 fps); 6MP (1 fps– 10 fps); 5MP (1 fps–12 fps); 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps); Sub steram:960H (1 fps–15 fps); D1/CIF(1 fps–25/30 fps)
Bit Rate: 32 kbps–6144 kbps per channel
Record Mode: Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop
Record Interval: 1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression: G.711A; G.711U; PCM
Audio Sample Rate: 8 KHz, 16 bit per channel
Audio Bit Rate: 64 kbps per channel

Display
Interface: 1 HDMI; 1 VGA
Resolution: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720. VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display: When IP extension mode not enabled: ¼, When IP extension mode enabled: 1/4/8/9
OSD: Camera title; Time; Video loss; Camera lock; Motion detection; Recording

Network
Interface: 1 RJ-45 Port (100 MB)
Network Function: http; https; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access: 128 users
Smart Phone: iPhone; iPad; Android
Interoperability: ONVIF 16.12, CGI Conformant

Video Detection and Alarm
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input: N/A
Relay Output: N/A

Playback and Backup
Playback: 1/4
Search Mode: Time/Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom
Backup Mode: USB Device/Network

Storage
Internal HDD: 1 SATA port, up to 10 TB capacity
eSATA: N/A

Auxiliary Interface
USB: 2 USB ports (USB 2.0)
RS485: 1 port, for PTZ control
RS232: N/A

Electrical
Power Supply: DC 12V/2A
Power Consumption (Without HDD): menor que 7W

Construction
Dimensions: Compact 1U, 260.0 mm × 237.9 mm × 47.6 mm (10.24'' × 9.37'' × 1.87'')
Net Weight (without HDD): 0.53 kg (1.17 lb)
Gross Weight: 1.07 kg (2.36 lb)
Installation: Desktop installation

Environmental
Operating Conditions: -10°C to +55°C (+14°F to +131°F), 0%–90% (RH)
Storage Conditions: -20°C to +70°C (-4°F to +158°F) , 0%–90% (RH)

Third-party Support
Third-party Support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications
Certifications: FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024

ESPECIFICACIONES TÉCNICAS CÁMARA DH-HAC-HFW1500CM(-A).

Camera
Image Sensor: 1/2.7 inch CMOS
Max. Resolution: 2880 (H) × 1620 (V)
Pixel: 5MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25s–1/100000s, NTSC: 1/30s–1/100000s
S/N Ratio: mayor que 65 dB
Min. Illumination: 0.01 Lux/F1.6, 30IRE, 0 Lux IR on
Illumination Distance: 30 m (98.4 ft)
Illuminator On/Off Control: Auto; manual
Illuminator Number: 3
Pan/Tilt/Rotation Range: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

Lens
Lens Type: Fixed-focal
Mount Type: M12
Focal Length: 2.8 mm; 3.6 mm
Max. Aperture: F1.6
Field of View: 2.8 mm: 132° × 111° × 58°, (diagonal × horizontal × vertical), 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical)
Iris Type: Fixed iris
Close Focus Distance: 2.8 mm: 0.9 m (3.0 ft), 3.6 mm: 1.6 m (5.2 ft)
DORI Distance: Lens 2.8 mm, Detect 63.6 m (208.7 ft), Observe 25.4 m (83.3 ft), Recognize 12.7 m (41.7 ft), Identify 6.4 m (21.0ft). Lens 3.6 mm, Detect 80 m (262.5 ft), Observe 32 m (105.0 ft), Recognize 16 m (52.5 ft), Identify 8 m (26.2 ft)

Video
Frame Rate: CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps, AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps, TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)
Day/Night: Auto switch by ICR
BLC: BLC/HLC/DWDR
WDR: DWDR
White Balance: Auto; manual
Gain Control: Auto; manual
Noise Reduction: 2D NR
Smart IR: Yes
Mirror: Off/On
Privacy Masking: Off/On (8 area, rectangle)

Certifications
Certifications: CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3- 3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port
Audio Interface: One channel built-in mic (-A)
Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power
Power Supply: 12V más menos 30% DC
Power Consumption: Max 3.7W (12V DC, IR on)

Environment
Operating Temperature: -40°C to +60°C (-40°F to 140°F); menor que 95% (noncondensation)
Storage Temperature: -40°C to +60°C (-40°F to 140°F); menor que 95% (noncondensation)
Protection Grade: IP67

Structure
Casing: Metal throughout the whole casing
Camera Dimensions: 166.6 mm × 69.7 mm × 70.0 mm
Net Weight: 0.33 kg (0.73 lb)
Gross Weight: 0.43 kg (0.95 lb)
