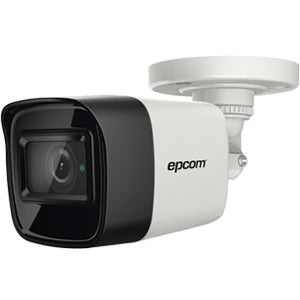

Bala TURBOHD 4K (8 Megapixeles) / Gran Angular 102º / Lente 2.8 mm / Exterior IP67 / IR EXIR 30 mts / dWDR.

Características Principales:

•Resolución máxima: 8.29 Megapixel (3840 x 2160).
•Sensor CMOS scan progresivo.
•Lente fijo: 2.8 mm (ángulo de visión 102.2º).
•30 mts IR EXIR.
•Soporta 4 tecnologías (TVI / AHD / CVI / CVBS).
•Permite seleccionar la resolución entre 8 Megapixel / 5 Megapixel / 4 Megapixel / 2 Megapixel.
•Funciones: dWDR / BLC / DNR / Mirror.

 Características Físicas y Eléctricas:

•Temperatura de operación: -40ºC a 60ºC.
•Alimentación: 12 vcd / 5.3 Watts.
•Protección: IP67.
•Fabricado en metal.
•Dimensiones: 81.9 x 86.7 x 217.9 mm.
•Peso: 435 gramos.

RESOLUCION

ESPECIFICACIONES TECNICAS:

1. Camera.-
•Image Sensor 8.29 megapixel progressive scan CMOS
•Signal System PAL / NTSC
•Frame Rate:
-TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
-CVI: 8MP@12.5fps, 8MP@15fps
-AHD: 5MP@20fps
-CVBS: 960H P/N
•Resolution 3840 (H) × 2160 (V)
•Min. illumination Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
•Shutter Time:
-PAL: 1/12.5 s to 1/50,000 s
-NTSC: 1/15 s to 1/50,000 s
•Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
•Horizontal Field of View 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
•Lens Mount M16
•Day & Night IR cut filter
•Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
•Synchronization Internal synchronization
•DWDR (Digital Wide Dynamic Range) 105 dB

2. Menu.-
•AGC Yes
•Day/Night Mode Auto/Color/BW (Black and White)
•White Balance Auto/Manual
•BLC (Backlight Compensation) Yes
•Language English
•Functions Brightness, Sharpness, DNR, Mirror, Smart IR

3. Interface.-
•Video Output 1 HD analog output
•Switch Button TVI/AHD/CVI/CVBS

4. General.-
•Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
•Power Supply 12 VDC +/-25%
•Power Consumption Max. 5.3 W
•Protection Level IP67
•Material:
-Front cover: Metal
-Main body: Plastic
-Bracket: Metal
•IR Range Up to 30 m
•Communication Up the coax, Protocol: HIKVISION-C (TVI output)
•Dimensions 81.9 mm × 86.7 mm × 217.9 mm (3.22” × 3.41” × 8.58” )
•Weight Approx.435 g (0.96 lb.)
