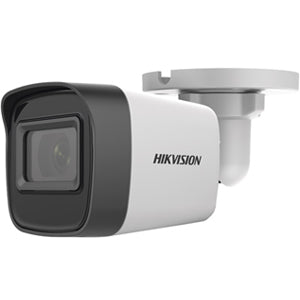

Hikvision Ds-2ce16d0t-itf

Vista Rapida
Bala TURBOHD 2 Megapixeles (1080p) / Gran Angular 99° / Lente 2.8 mm / 30 mts IR EXIR / Exterior IP67 / 4 Tecnologías / DWDR.Características Principales :•Resolución máxima: 1920...

$ 630.00 $ 670.00

Agotado

Bala TURBOHD 2 Megapixeles (1080p) / Gran Angular 99° / Lente 2.8 mm / 30 mts IR EXIR / Exterior IP67 / 4 Tecnologías / DWDR.

Características Principales :

•Resolución máxima: 1920 x 1080 (2 Megapixel).
•Lente fijo: 2.8 mm (ángulo de visión 99°).
•30 mts smart IR (visión nocturna).
•Soporta las 4 tecnologías del mercado (TVI / AHD / CVI / CVBS).
•DWDR / AGC / 2D DNR.




CARACTERISTICAS FISICAS Y ELECTRICAS


•Alimentación / Consumo: 12 VCD - 3 watts.
•Protección: IP67 (interior / exterior).
•Fabricada en metal.
•Dimensiones: 57.9 x 60.9 x 138.8 mm.
•Peso: 257 g.



VISTAS





ESPECIFICACIONES TECNICAS:

1. Camera.-
•Image Sensor 2 MP CMOS
•Signal System PAL/NTSC
•Resolution 1920 (H) × 1080 (V)
•Frame Rate
-TVI: 1080P@30fps, 1080P@25fps
-CVI: 1080P@30fps, 1080P@25fps
-AHD: 1080P@30fps, 1080P@25fps
-CVBS: PAL/NTSC
•Min. Illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
•Shutter Time:
-PAL: 1/25 s to 1/50, 000 s
-NTSC: 1/30 s to 1/50, 000 s
•Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
•Field of View
-2.8 mm, horizontal FOV: 99.5°, vertical FOV: 53.7°, diagonal FOV: 116.5°
-3.6 mm, horizontal FOV: 76.4°, vertical FOV: 41.9°, diagonal FOV: 89.6°
-6 mm, horizontal FOV: 49.2°, vertical FOV: 28.3°, diagonal FOV: 56.1°
•Lens Mount M12
•Day & Night ICR
•WDR (Wide Dynamic Range) Digital WDR
•Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°

2. Menu.-
•Image Mode STD/HIGH-SAT
•AGC Yes
•Day/Night Mode Auto/Color/BW (Black and White)
•White Balance Auto/Manual
•AE (Auto Exposure) Mode Global/BLC/HLC/DWDR
•Noise Reduction 2D DNR
•Language English
•Funcion Brightness, Sharpness, Smart IR

3. Interface.-
•Video Output Switchable TVI/AHD/CVI/CVBS

4. General
•Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
•Power Supply 12 VDC +/- 25%
•Power Consumption Max. 3 W
•Protection Level IP67
•Material Metal
•IR Range Up to 30 m
•Communication HIKVISION-C
•Dimensions 57.9 mm × 60.9 mm × 138.8 mm (2.28" × 2.39" × 5.47")
•Weight: Approx. 257 g (0.57 lb.)
