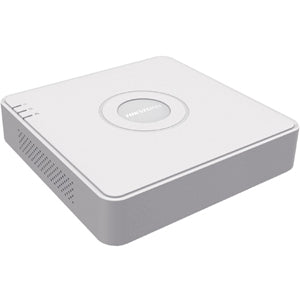

Hikvision Ds-7104hghi-k1(s)

Vista Rapida
(AUDIO POR COAXITRON) DVR 2 Megapixel (1080P) lite / 4 Canales TURBOHD + 1 Canal IP / 1 Bahía de Disco Duro / H.265+ / Salida de video Full HD.Características...

$ 950.00 $ 1,010.00

Agregar al Wishlist

(AUDIO POR COAXITRON) DVR 2 Megapixel (1080P) lite / 4 Canales TURBOHD + 1 Canal IP / 1 Bahía de Disco Duro / H.265+ / Salida de video Full HD.

Características Principales.-

•Soporte de tecnologías: HD-TVI / HD-CVI / AHD / Analógico (CVBS) / IP.
•Software cliente iVMS-4200.
•Compatible con Hik-Connect P2P.
•Soporta servicio Hik-connect Domain / DynDNS / NO-IP.
•Soporta 4 canales TURBOHD / analógicos + 1 canal IP = 5 canales en total.
•NOTA: Permite apagar canales análogos para agregar canales IP.


CARACTERISTICAS FISICAS Y ELECTRICAS



•Alimentación: 12 VCD / 1.5 A.
•Consumo sin disco duro: 16 W.
•Temperatura de operación: -10°C hasta 55°C.
•Dimensiones: 200 × 200 × 45 mm (W × D × H).
•Peso: 0.8 Kg sin disco duro.
•NOTA: No soporta canal cero.
•No es compatible con control remoto.




INTERFACES ENTRADAS / SALIDAS



•Salida de video:
-HDMI: 1920×1080, 1280×1024, 1280×720, 1024×768.
-VGA: 1920×1080, 1280×1024, 1280×720, 1024×768.
•Entrada audio: 1 (RCA, 2.0 Vp-p, 1K ohm).
•4 Entradas de audio por coaxitron (modelos compatibles).
•Salida audio: 1 (RCA, 2.0 Vp-p, 1K ohm).
•Entrada alarma: N/A.
•Salida alarma: N/A.
•Interfaz red: 1 puetos (RJ-45 10/100 Mbps).
•Capacidad HDD: 1 @ 4 TB.
•NOTA: Para utilizar audio de 2 vías se recomienda colocar un micrófono en la entrada de audio, no se recomienda para audio de 2 vías una cámara con audio por coaxitron.



COMPRESION Y RESOLUCION



•H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264.
•HD-TVI: 1080P Lite @ 30 IPS.
•HD-CVI: 1080P Lite @ 30 IPS.
•CVBS: WD1 @ 30 IPS.
•AHD: 1080P Lite @ 30 IPS.
•IP: 2 Megapixel (1080p).


ESPECIFICACIONES TECNICAS:

1. Recording.-
•Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
•Encoding resolution:
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF
•Frame rate:
-Main stream:
When 1080p Lite mode not enabled: For 720p stream access: 720p /WD1 /4CIF /VGA /CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled: 1080p Lite/HD 720p Lite /WD1 /4CIF /VGA /CIF@25 fps (P)/30 fps (N)
-Sub-stream: 4CIF/CIF/QVGA@25 fps (P)/30 fps (N)
•Video bit rate 32 Kbps to 4 Mbps
•Stream type Video, Video & Audio
•Audio compression G.711u
•Audio bit rate 64 Kbps

2. Video and Audio.-
•IP video input: 1-ch (up to 5-ch) Up to 1080p resolution Support H.265+ /H.265 /H.264+ /H.264 IP cameras
•Analog video input: 4-ch BNC interface (1.0 Vp-p, 75 ohm), supporting coaxitron connection
•Turbo HD input 1080p25, 1080p30, 720p25, 720p30
•AHD input 1080p25, 1080p30, 720p25, 720p30
•HDCVI input 1080p25, 1080p30, 720p25, 720p30
•CVBS input Support
•HDMI/VGA output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA simultaneous output
•Audio input: 1-ch RCA (2.0 Vp-p, 1 K ohm) 4-ch via coaxial cable
•Audio output 1-ch, RCA (Linear, 1 K ohm)
•Two-way audio Reuse the first audio input
•Synchronous playback: 4-ch

3. Network.-
•Remote connection 32
•Network protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, https
•Network interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

4. Auxiliary interface.-
•SATA 1 SATA interface
•Capacity Up to 4 TB capacity for each disk
•Alarm in/out N/A
•USB interface Rear panel: 2 × USB 2.0

5. General.-
•Power supply 12 VDC, 1.5 A
•Consumption (without HDD) <= 16 W
•Working temperature -10 °C to 55 °C (14 °F to +31 °F)
•Working humidity 10% to 90%
•Dimension (W × D × H) 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
•Weight (without HDD) <= 0.8 kg (1.8 lb)
